When electrical problems hit your home, the frustration is immediate. A flickering light, a dead outlet, a breaker that won’t stay on — these aren’t just annoyances, they’re signals your system is trying to tell you something. Working through the right residential electrical troubleshooting steps can help you identify the source of the problem, fix what’s safe to fix, and know exactly when to call for backup. This guide walks you through preparation, diagnosis, testing, verification, and when to hand it over to a pro.
Table of Contents
- Key takeaways
- The right tools for residential electrical troubleshooting steps
- Step-by-step electrical troubleshooting process for common issues
- Verifying your repair actually worked
- When to call a licensed electrician
- My honest take on residential troubleshooting
- How Shepherdelectricalconstruction can help when troubleshooting isn’t enough
- FAQ
Key takeaways
| Point | Details |
|---|---|
| Prepare before you test | Gather tools and shut off power before touching any wiring or components. |
| Follow a logical sequence | Identify symptoms first, then isolate the fault before testing individual parts. |
| Always verify under load | Resetting a breaker is not a fix; test the circuit under real conditions for at least 10 minutes. |
| Document everything | Notes on when, where, and how the fault behaves can cut a professional’s diagnostic time significantly. |
| Know your limits | Persistent trips, unfamiliar wiring, or no power to a panel require a licensed electrician. |
The right tools for residential electrical troubleshooting steps
Before you test a single outlet or flip a single breaker, you need the right gear. Skipping this step is how minor troubleshooting turns into a trip to the emergency room.
Here’s what you need on hand:
- Multimeter: Measures voltage, continuity, and amperage. This is your most important diagnostic tool.
- Non-contact voltage tester: Detects live current without touching wires directly. Use it before touching anything.
- Insulated gloves: Rated for 1,000 volts at minimum. Not optional.
- Flathead and Phillips screwdrivers: For removing outlet covers and panel access plates.
- Flashlight or headlamp: So you can work safely in dim utility spaces or when power is out.
- Electrical tape and wire markers: For labeling circuits and noting which wires go where.
- Notebook or phone: To record your findings at every step.
Once your tools are ready, locate your main electrical panel and identify which breakers correspond to which circuits. Most panels have a label sheet inside the door, though it’s rarely fully accurate. Turn off the specific breaker for the circuit you’re working on, then confirm zero voltage at the outlet or fixture using your voltage tester or multimeter before you touch anything.
Pro Tip: If your panel labels are unclear or missing, plug a lamp into the outlet in question and flip breakers one at a time until it goes off. Label that breaker clearly before doing anything else.
Proper preparation also means knowing your limits before you start. If you open a panel and see melted wires, burn marks, or unfamiliar wiring configurations, stop and call a professional. These are signs the problem goes beyond basic troubleshooting.
| Tool | Purpose |
|---|---|
| Multimeter | Voltage, continuity, and amperage testing |
| Non-contact voltage tester | Safe live wire detection |
| Insulated gloves | Personal protection from shock |
| Circuit breaker directory | Identifies which breaker controls which circuit |
| Flashlight | Visibility in low-light work areas |
Step-by-step electrical troubleshooting process for common issues

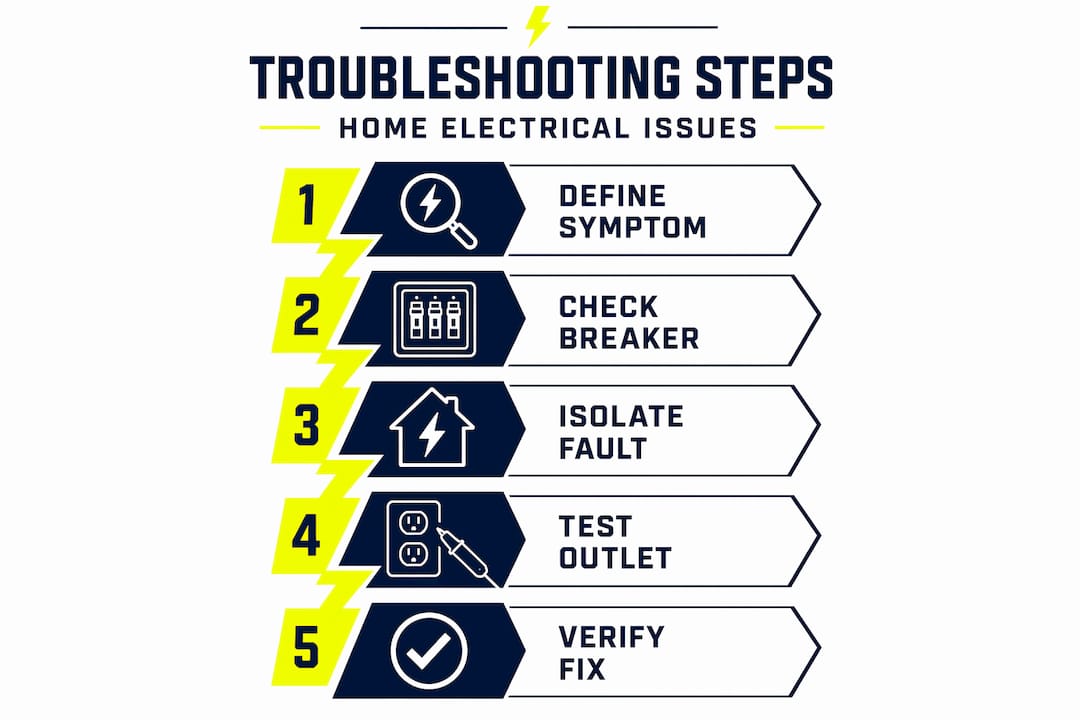

The electrical troubleshooting process works best when you treat it like a detective case. You gather facts before you start poking at things. Here is a logical sequence that applies to most home electrical issues.
Step 1: Define the symptom clearly
Write down exactly what you’re experiencing. Is it one outlet that stopped working? Lights flickering only when the HVAC kicks on? A breaker that trips within minutes of being reset? The more specific your description, the faster you’ll isolate the cause.
Ask yourself three questions: When does it happen? What devices are running at that moment? Is it constant or intermittent? Intermittent faults are the trickiest. They often point to loose connections or a failing component rather than a simple overload.
Step 2: Gather circuit information
Go to your panel and look at the affected breaker. A tripped breaker sits between ON and OFF, not fully in either position. Reset it by pushing it fully to OFF, then back to ON. If it immediately trips again, you have a short circuit or ground fault on that circuit. Do not keep resetting it. Repeated resets on a faulty circuit can cause heat buildup and create a fire hazard.
Circuit breakers trip for three main reasons: overload (too many devices pulling current), short circuit (a hot wire touching a neutral or ground), or ground fault (current leaking outside the intended path). Each has distinct signs, and identifying which one you’re dealing with shapes every next step.
Step 3: Isolate the fault
Unplug every device on the affected circuit. Then reset the breaker. If it holds, the problem is an overload or a faulty device. Plug items back in one at a time, waiting 30 seconds between each. When the breaker trips again, the last device you plugged in is the likely culprit.
If the breaker trips even with nothing plugged in, the fault is in the wiring itself, not the load. That situation calls for a professional.
Pro Tip: To determine if a breaker itself is failing rather than the circuit, try swapping it with a known good breaker of the same amperage. If the new breaker holds and the old one trips under identical conditions, the breaker is defective.
Step 4: Test outlets and switches with a multimeter
With the breaker off and confirmed dead using your voltage tester, remove the outlet cover. Set your multimeter to AC voltage (typically 120V for standard outlets). Restore power carefully and test the outlet: insert the red probe into the small slot (hot) and black probe into the large slot (neutral). A reading of 110V to 125V is normal. Zero voltage means no power is reaching the outlet.
Multimeter tests of voltage and continuity give you a clear picture of whether current is present and whether the circuit path is complete. A continuity test with the power off can reveal open circuits caused by broken wires or burned connections.
Step 5: Test GFCI outlets
GFCI outlets are common in kitchens, bathrooms, garages, and outdoor areas. When one trips, it can cut power to several other outlets downstream on the same circuit. Press the TEST button to confirm it trips, then press RESET to restore power. If it won’t reset or won’t trip on command, GFCI devices should be replaced immediately. These devices have a lifespan of 10 to 15 years, and a dead GFCI that appears functional is more dangerous than a dead outlet. You can learn more about testing outlets safely before calling anyone.
Verifying your repair actually worked
Most homeowners make the same mistake: they reset the breaker, the lights come back on, and they consider it fixed. That is not verification. That is assumption.
True verification means operating the circuit under the same load conditions that caused the issue in the first place. Plug the devices back in, run them simultaneously, and monitor the circuit for at least 10 minutes. A fault that returns under load within that window means the repair is incomplete or the underlying cause was not addressed.
Here is what to watch for during verification:
- Breaker trips again under normal load: the root cause is still present.
- Lights flicker when the circuit is fully loaded: likely a loose connection or undersized wiring.
- Outlet works but feels warm to the touch: a sign of excessive resistance, possibly from a loose wire or damaged receptacle.
- No issues for 10 minutes under normal load: your repair is holding.
Common mistakes during this phase include ignoring intermittent symptoms because they didn’t recur immediately, and assuming a single reset proved the problem was a fluke. Intermittent faults are often the first sign of a wiring issue that will get worse. Monitor the circuit over several days if the fault was occurring irregularly. Document every observation, including the time, what was running, and how the circuit behaved.
You should also check your panel for signs of panel trouble during this phase, since repeated faults on multiple circuits can signal a broader system issue rather than a single circuit problem.
When to call a licensed electrician
Knowing when to stop is just as important as knowing what to test. Some home electrical issues are safely handled with basic tools and patience. Others are not.
Call a licensed electrician when you observe any of the following:
- A breaker trips repeatedly even with no load connected.
- You see burn marks, scorch smells, or melted insulation anywhere near wiring or outlets.
- You have no power to part of your home and the panel shows no tripped breakers.
- You find wiring that looks unfamiliar, such as older knob-and-tube or aluminum branch wiring.
- You are working near a main panel and are unsure which lines are always live.
- Multiple circuits are failing at once, pointing to a panel or service issue.
When you do call a pro, your documentation pays off. Detailed problem information including when the fault occurs, what load was connected, and what you already tested significantly reduces the time a technician spends diagnosing. That translates directly to lower labor costs. You might also find guidance on choosing the right contractor helpful before you make the call.
Pro Tip: Before the electrician arrives, write a one-page summary: what the problem is, when it started, what you tried, and what the results were. Sharing this diagnostic information saves the technician time and shows them where to focus immediately.
Preparing your home also means clearing access to the panel, identifying which outlets or fixtures are affected, and noting the age of your wiring if you know it. The more complete your picture, the more efficiently the professional can work.
My honest take on residential troubleshooting
I’ve been working with electrical systems long enough to see the same patterns repeat. Homeowners either jump in too fast without confirming power is off, or they wait so long that a small wiring issue becomes a code violation repair. Neither extreme serves you well.
What I’ve found actually works is a methodical mindset. Write down what’s happening before you touch anything. Confirm zero voltage at every step. Test under real conditions, not just for 30 seconds after a reset.
The mistake I see most often is people confusing a breaker reset with a repair. Those are completely different things. A reset puts the circuit back in service. A repair addresses why it failed. If you skip the root cause, the problem will return, and it will usually return at the worst possible moment.
I also want to be direct about documentation: most homeowners skip it because it feels tedious. But when a professional shows up and you can tell them exactly when the fault started, what was running at the time, and what you already tested, the visit is faster and cheaper. That notes habit is worth building.
The residential wiring checks that matter most are the ones done systematically, not reactively. Treat your home’s electrical system like you’d treat any mechanical system: check it regularly, respond to early warning signs, and don’t wait for a complete failure.
— Brad
How Shepherdelectricalconstruction can help when troubleshooting isn’t enough
Sometimes the problem is deeper than a tripped breaker or a failing GFCI outlet. When your troubleshooting points to wiring issues, panel problems, or faults you can’t safely reach, that’s exactly where Shepherdelectricalconstruction steps in.
Shepherdelectricalconstruction serves homeowners across Edmond and the Oklahoma City Metro with residential electrical services covering everything from outlet repairs and panel upgrades to emergency response and GFCI installations. Every technician follows NFPA, NEC, and OSHA safety standards, so you know the work is done right and documented properly. Whether you need a professional to pick up where your troubleshooting left off or a full electrical services assessment before a repair, the team is ready to help. Book online or call for same-day emergency support. Protect your home and your family by getting the right professionals involved at the right time.
FAQ
What are the first steps in residential electrical troubleshooting?
Start by identifying the symptom clearly and checking your breaker panel for tripped breakers. Then isolate the fault by unplugging all devices on the affected circuit before testing individual components.
Why does my circuit breaker keep tripping?
Breakers trip due to an overload, a short circuit, or a ground fault. If it trips with no load connected, the fault is in the wiring and requires professional attention.
How do I test a GFCI outlet?
Press the TEST button to trip it and the RESET button to restore power. If the outlet won’t trip or won’t reset, replace it. GFCI devices that fail to respond are no longer providing shock protection.
When should I stop DIY troubleshooting and call an electrician?
Call a licensed electrician if the breaker trips with nothing plugged in, if you see burn marks or smell burning, if you have no power despite no tripped breakers, or if you encounter unfamiliar wiring types.
How do I verify an electrical repair is complete?
Run the repaired circuit under normal load conditions for at least 10 minutes. If the fault does not return, the repair is holding. A fault that reappears quickly indicates the root cause was not fully addressed.
