Electrical Panel Capacity: What Edmond Homeowners Should Know

Electrical panel capacity is part of the answer to a practical question: can your home’s electrical system support the equipment you want to use? Before adding an EV charger, electric heating, a workshop or another major appliance, an electrician needs to check both the available electrical capacity and the panel’s condition and circuit space.

A number on a breaker or an empty space in the panel cannot answer that question alone. This guide explains what those clues mean and what to ask about before approving electrical work.

Planning an upgrade in Edmond or nearby OKC? Call Shepherd Electrical at (405) 406-1026, send a text, or book online to discuss the problem or equipment you have in mind. Oklahoma electrical license: OK-127758.

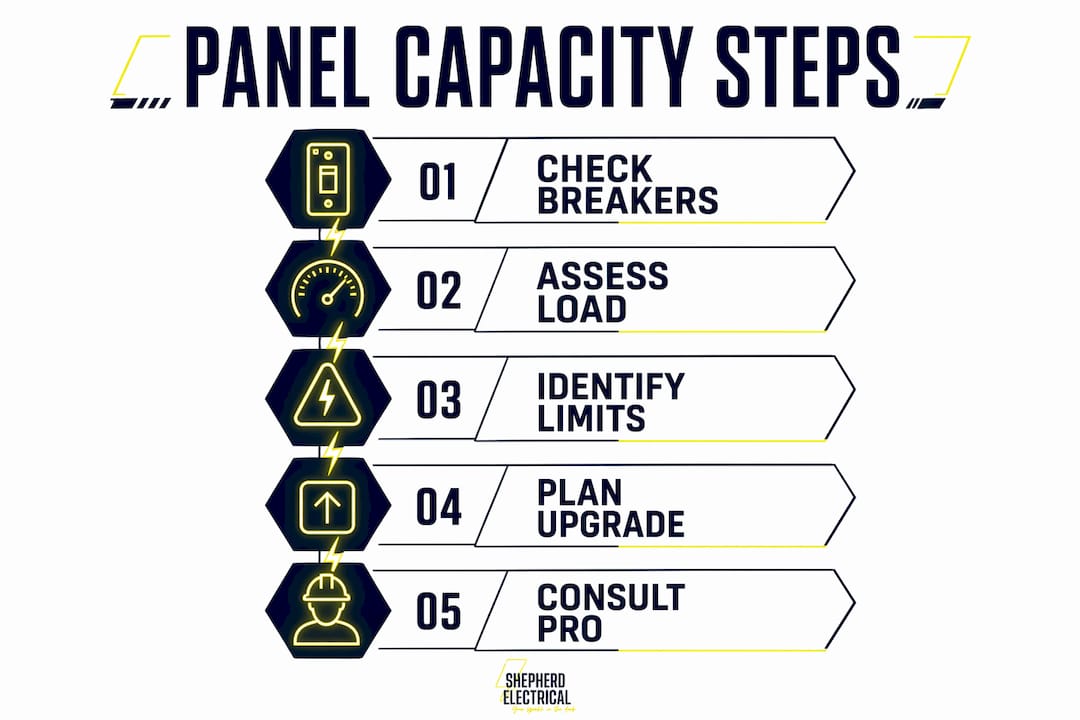

Three things that determine whether another circuit will work

1. Electrical service and equipment ratings

The home’s service supplies electricity, and the panel distributes it to individual circuits. Equipment ratings are expressed in amperes, usually shortened to amps. The service, wiring, disconnects and panel must be suitable for the installation.

The main breaker marking is useful information, but it is not a complete capacity assessment. A panel’s internal bus rating can differ from the rating of its installed main breaker. Equipment labels and the actual installation must be checked together. Schneider Electric’s load-center documentation illustrates why these ratings should not be treated as interchangeable.

2. Space for approved breakers

Breaker spaces are a physical limit. A panel with room for another breaker may still lack capacity for the proposed load; a panel with no empty spaces may have electrical capacity but need a different circuit arrangement.

The panel’s labeling determines which breakers and circuit arrangements are permitted. A tandem breaker and a two-pole breaker are different devices. Do not buy a breaker because it appears to fit or assume that adding more breaker spaces increases the home’s service capacity. An electrician should select any equipment changes.

3. The existing load and the proposed equipment

A load calculation evaluates the home’s electrical needs using the applicable rules and equipment information. Adding together the numbers printed on branch breakers does not establish how much spare service capacity remains. Nor does a blanket “keep the panel below 80%” shortcut settle whether a new load is acceptable.

The assessment must account for the type of load and applicable equipment requirements. The U.S. Department of Energy’s electrical-contractor handbook specifically warns that an open panel slot does not establish sufficient service capacity for EV charging.

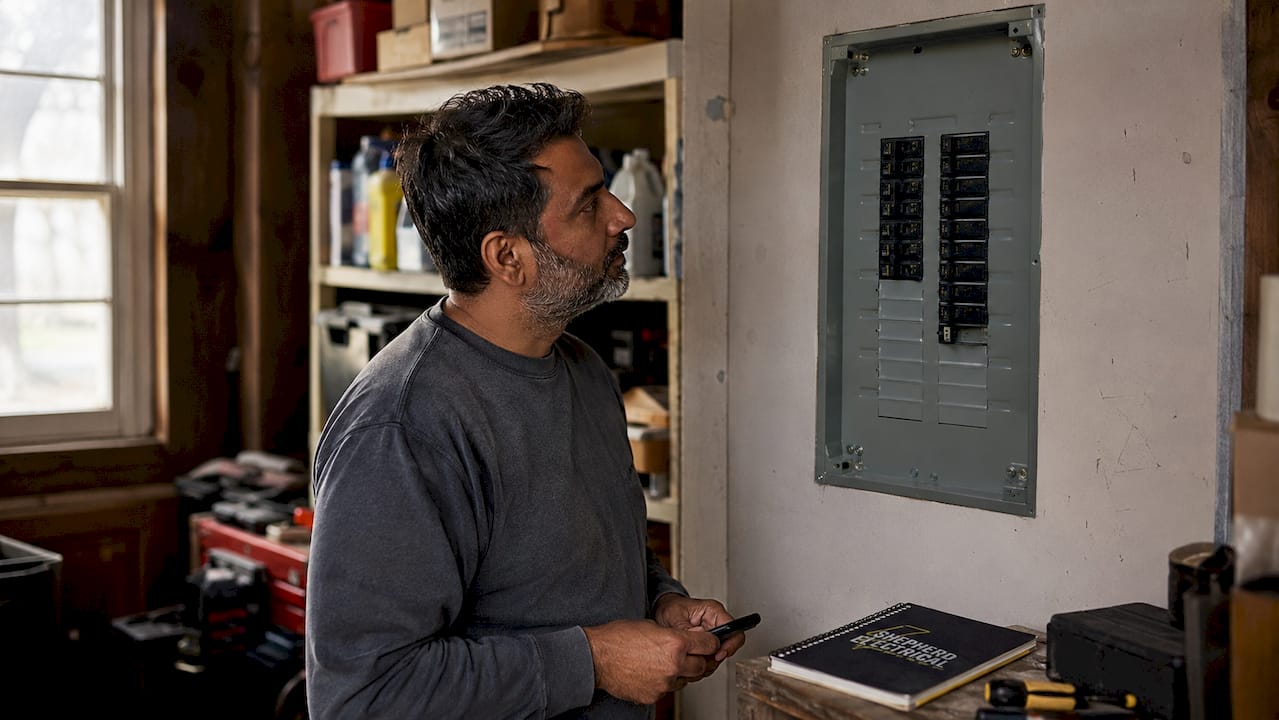

What you can gather safely before a visit

Describe what you want to add, where it will be installed and any current electrical symptoms. Model numbers or the manufacturer’s requirements for a planned appliance or charger help the electrician prepare.

• List major existing electric equipment, such as heating, cooling, cooking, water heating, a dryer, a hot tub or a charger.
• Note future plans so the discussion can cover more than today’s project.
• If the area is dry and appears normal, a photo of the closed panel and any externally visible label may help. Do not approach damaged equipment to get a photo.
• Tell the office whether the panel is indoors or outdoors and whether access is obstructed.

Leave covers, fasteners, wiring and meter equipment alone. Turning off a main breaker does not make every part inside the equipment safe to touch. You do not need to inspect energized components or perform your own load calculation before calling.

Does an EV charger mean you need a panel upgrade?

Not automatically. The EPA’s home charging guidance recommends an electrician’s load calculation and describes options such as a lower-powered charger or suitable load-management equipment. The right choice depends on the home, charger and charging needs.

A charger does not always need the same circuit size. Do not assume every installation requires a 50-amp breaker, or that every 100-amp home needs a service upgrade. Equally, a 200-amp marking is not a guarantee that any additional equipment can be installed.

Compare the scope of an EV charger installation with any proposed panel or service upgrade. Ask which specific limitation the recommendation addresses.

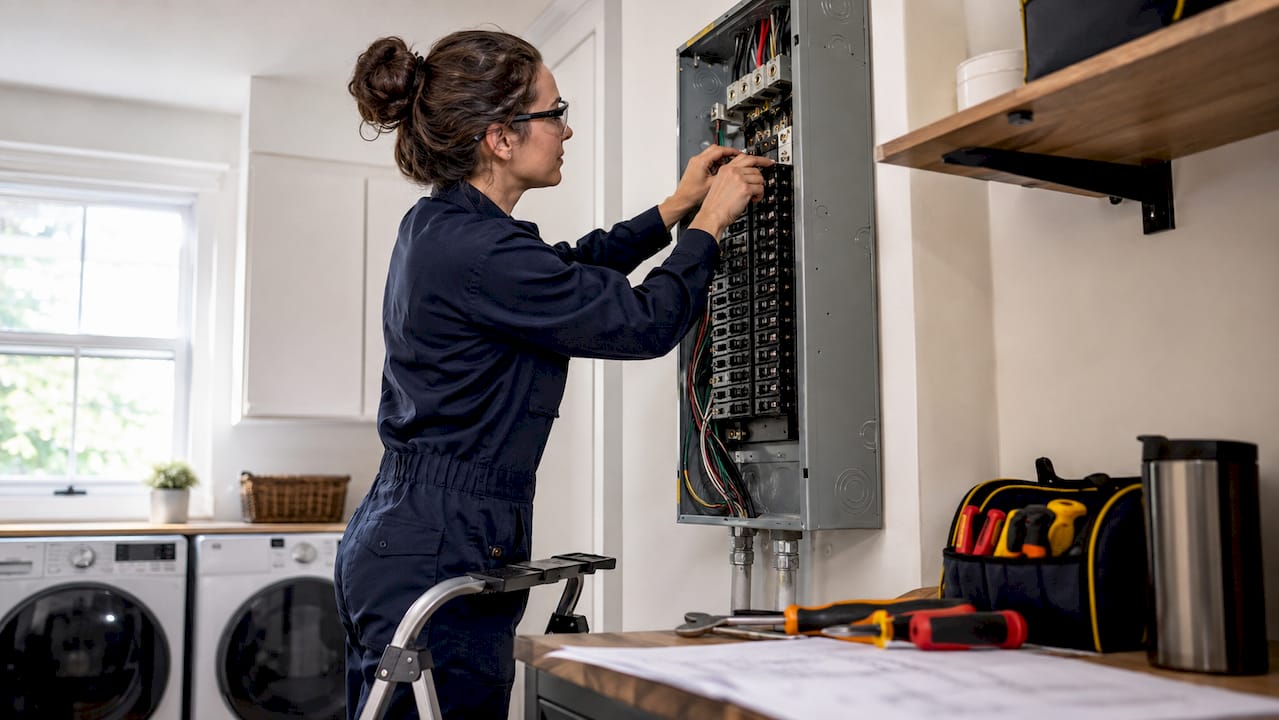

What the electrician may recommend

• Repair a specific problem: repeated tripping or another symptom may need electrical troubleshooting before a capacity decision.
• Add a suitable circuit: a dedicated circuit may be appropriate when the existing system can support it.
• Add circuit space: a subpanel can provide additional circuit locations, but it does not by itself increase the incoming service capacity.
• Change the load or equipment plan: a different charger output or a properly designed load-management approach may suit the project.
• Upgrade equipment or service: this may be appropriate when condition, calculated load or the project scope calls for it. Utility coordination, permits and inspection requirements should be confirmed for the property.

Ask for an explanation of the proposed work, alternatives, expected power interruption and any conditions that could change the estimate. A photograph alone cannot establish the complete scope. For a related comparison, see our 100-amp versus 200-amp planning guide.

Warning signs need attention before upgrade planning

Repeated breaker trips, unusual heat, a burning smell, shocks or partial power loss deserve professional assessment. These symptoms do not by themselves prove that the whole panel is undersized. The Electrical Safety Foundation’s home safety guidance explains why electrical warning signs should not be ignored.

For smoke, fire, active arcing or immediate danger, move to safety and call 911. Do not approach the panel to investigate. Stop using the affected area; turn off the affected breaker only if you can do so safely. Contact an electrician after the immediate danger is addressed. For unusual heat or a burning odor without active smoke or fire, stop using the affected equipment and call a licensed electrician promptly.

Common questions about panel capacity

Can I tell the amperage by counting breaker spaces?

No. Spaces describe the panel’s physical circuit arrangement, not its available electrical capacity. Use a professional assessment before adding a load.

Does a subpanel give my house more power?

Not by itself. It redistributes available power to additional circuits. The supply feeding it still has to support the proposed load.

Does a tripping breaker mean I need a larger panel?

No. A circuit, appliance, connection or protective-device problem may be involved. Do not repeatedly reset a breaker or install a larger one to stop tripping; have the cause checked.

Is the panel’s age or amp rating enough to decide whether it must be replaced?

No. Condition, the actual installation, planned loads and applicable local requirements matter. Ask what the evaluation found and why the recommended work is necessary.
